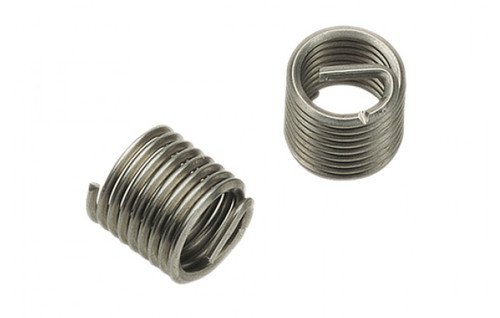

V-COIL Wire thread insert Free running type S

Application:

• Thread Repair of damaged or worn-out threads

• Thread Armour Plating for material with low shear strength

• Recovery of rejected items

Advantages:

• produced from precision profiled austenitic stainless steel wire wound into a helical spiral

• spring like appearance

• for high strength and long-lasting internal threads

• higher temperature and corrosion resistance

• higher load capacity after the repair by better thread properties

• can generally be incorporated into existing designs where no previous provision has been made

• position is maintained by the action of radial pressure between their coils and the flanks of the tapped hole

  Type of thread	metric ISO-thread
  Standard	DIN 8140
  Material	from stainless steel
  Tolerance	ISO2 (6H)
  Size	M 20 x 2.5
  Length	2.0 x D
