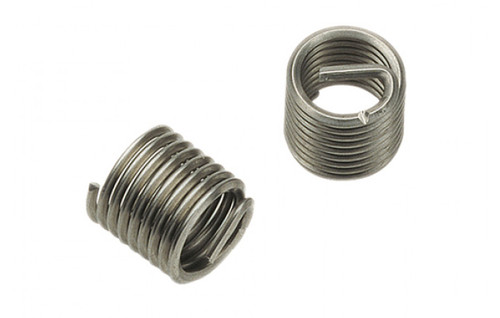

V-COIL Wire thread insert Free running type S

Application:

• Thread Repair of damaged or worn-out threads

• Thread Armour Plating for material with low shear strength

• Recovery of rejected items

Advantages:

• produced from precision profiled austenitic stainless steel wire wound into a helical spiral

• spring like appearance

• for high strength and long-lasting internal threads

• higher temperature and corrosion resistance

• higher load capacity after the repair by better thread properties

• can generally be incorporated into existing designs where no previous provision has been made

• position is maintained by the action of radial pressure between their coils and the flanks of the tapped hole

  Type of thread	Unified coarse thread
  Standard	DIN 8140
  Material	from stainless steel
  Tolerance	2B
  Size	UNC 1.1/4 x 7
  Length	1.5 x D
