VOLKEL STI Machine Tap ISO 529 Form C 35° Spiral Flute HSSE

for general use

• non abrasive material up to 900 N/mm²

• unalloyed and low alloyed steel

• for thread cutting by hand and machine

• for through holes

  Type of thread	metric ISO-thread
  Standard	ISO 529

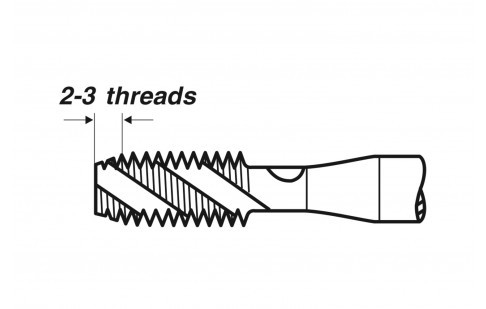

  Form	Form C
  Material	HSSE
  Tolerance	ISO1 (4H)
  Size	M 5 x 0.8
  Overall length (L1)	66 mm
  Thread length (L2)	19 mm
  Core hole diameter (D1)	5.2 mm
  Shank diameter (D2)	6.3 mm
  Diameter (B)	6.0 mm
  Drive connector	5.0 mm
