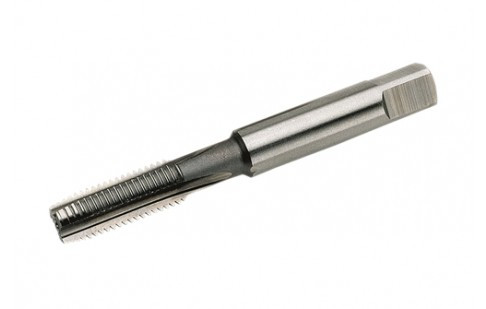

VOLKEL STI Short Machine Tap ISO 529 Form D HSS-G
Application:
for general use
-
non abrasive material up to 900 N/mm²
-
unalloyed and low alloyed steel
-
for thread cutting by hand and machine
-
for through and blind holes
Type of thread British Standard Fine Thread Standard ISO 529 Form Form D Material HSS-G Size BSF 3/4 x 12 Overall length (L1) 118 mm Thread length (L2) 38 mm Core hole diameter (D1) 19.5 mm Shank diameter (D2) 16.0 mm Diameter (B) 21.5 mm Drive connector 12.5 mm
Type of threadBritish Standard Fine ThreadStandardISO 529FormForm DMaterialHSS-GSizeBSF 3/4 x 12Overall length (L1)118 mmThread length (L2)38 mmCore hole diameter (D1)19.5 mmShank diameter (D2)16.0 mmDiameter (B)21.5 mmDrive connector12.5 mm
